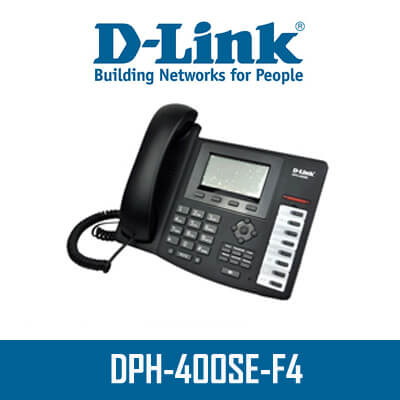

Dlink DPH-400SE-F4 Addis Ababa
Phone DPH-400SE / E / F3 outfitted with includes 1 port WAN, that is produced for a link with the cable / DSL-modem or broadband router. Also, the main harbor could be linked to a switch with PoE and receiving energy through PoE, where energy shops aren’t available. Another LAN port enables you to definitely connect a pc. This could be a possibility to concurrently talk on IP-phone and check pages to the web, send e-mail, transfer files, and perform other tasks on the pc network.
Features
Network interfaces
ā¢ 1 WAN port 10 / 100BASE-TX PoE-enabled to connect to the Internet
ā¢ 1 LAN port 10 / 100BASE-TX to PC
Signal, media and network protocols
ā¢ SIP RFC 3261
ā¢ SIP RFC 2327
ā¢ RTP RFC 1889
ā¢ Assign IP-address: Static IP-address, DHCP and PPPoE
ā¢ STUN, static port mapping (for NAT traversal)
ā¢ SNTP
ā¢ DNS and DNS SRV
ā¢ TFTP / FTP / HTTP for Auto Provision
ā¢ IP / TCP / UDP / ARP / ICMP
ā¢ The Router and Bridge
Audio Codecs
ā¢ G.711a / u (64 kbit / s)
ā¢ G.729A / B (8 Kbit / s)
ā¢ G.723.1
ā¢ G.722
ā¢ G.726-32
Advanced Features
ā¢ Silence Suppression
ā¢ Acoustic echo cancellation (G.167)
ā¢ Ability to connect headsets with RJ-9
ā¢ Voice Activity Detection (VAD)
ā¢ Comfort Noise Generation
ā¢ Jitter-Buffer
ā¢ The transmitter DTFM (SIP info, Transparent, RFC 2833)
ā¢ Packet Lost Concealment (PLC)
Keyboard
ā¢ 4 programmable keys to perform certain functions
ā¢ 5 keys SIP line
ā¢ MWI
ā¢ Headphones
ā¢ RLS (Release Key)
ā¢ Call Hold (Hold)
ā¢ Call forwarding (Transfer)
ā¢ Conference (CONF)
ā¢ Phonebook
ā¢ Call History (History)
ā¢ Redial (Redial and write access to the archive of calls; and the completion of a set of call numbers)
ā¢ Speaker (Speaker)
ā¢ 4 navigation keys for navigating in the settings; Adjusting the call volume, the speaker and handset
ā¢ Enter (confirmation button)
ā¢ 12 numeric keys, including keys * and #
ā¢ Mute (Mute)
ā¢ Adjusting the volume (Vol- / Vol +)
Phone Features
ā¢ Multiple users (5 user accounts SIP)
ā¢ Automatic Caller ID
ā¢ Archive Call 100 missed calls, incoming calls 100, 100 outgoing calls
ā¢ Phone book (up to 500 contact names and phone numbers)
ā¢ Remote phone book (up to 4 phone books in a format xml)
ā¢ Date / Time
ā¢ Show call timer
ā¢ 11 call tones to choose from (9 call tones and 3 melodies)
ā¢ 9 numbers for speed dialing
ā¢ The incoming call
ā¢ Flexible dial map
ā¢ Password protection for access to the configuration interface
ā¢ Pre-dial before sending
ā¢ Ability to connect the expansion module keys
ā¢ MWI
ā¢ SMS
ā¢ Locking the keypad
ā¢ Emergency Call
Call functions
ā¢ Call Hold Resume
ā¢ Mute
ā¢ Call Transfer (accompanied or unaccompanied)
ā¢ Call Forwarding (busy, no answer, unconditional)
ā¢ Call Waiting
ā¢ Call Waiting Indication
ā¢ Three-way conference
ā¢ Anonymous call / Reject
ā¢ Message Waiting Indication
ā¢ “Do not disturb”
ā¢ Auto Answer
ā¢ Black list
ā¢ Limit List
ā¢ Auto hangup
ā¢ Automatic Dialing
ā¢ The prohibition of certain outgoing calls
ā¢ Ā«hot lineĀ»
ā¢ BLF / Presence
ā¢ Intercom
ā¢ Call Pickup (Call Pickup)
ā¢ Action url / Active uri
Network functions
ā¢ QOS: IEEE 802.1p and IEEE 802.1Q
ā¢ Diffserv (DSCP) / ToS
ā¢ Support for the full range of VLAN ID
ā¢ Class of Service Support by VLAN Tag
ā¢ LLDP
ā¢ L2TP VPN
ā¢ OpenVPN – (Warning: the device comes into the territory of the customs union, this functionality is not available)
The user interface / Network Management
ā¢ The user interface screen / keyboard in English and other languages
ā¢ Web-user interface (HTTP) in English and other languages
ā¢ Remote software upgrades via FTP / TFTP / HTTP
ā¢ APS auto-provisionning for software updates and profile
ā¢ The appearance of renewal in case of damage to the firmware
Physical & Enviromental
Input supply
100 ~ 120, 220 ~ 240V AC via an external power adapter
Power output
5VDC, 1A
Power consumption
ā¢ Typical: 2.5 W (Standby)
ā¢ Max .: 2.8 W (During a call)
Dimensions
240 x 185 x 45 mm
Weight
0.99 kg
Operating Temperature
From 0 Ā° to 40 Ā° C
Storage temperature
-20 Ā° to 60 Ā° C
Working Humidity
From 10 to 65% non-condensing
Humidity in storage
From 15 to 85% non-condensing
Certifications
CE Class B
